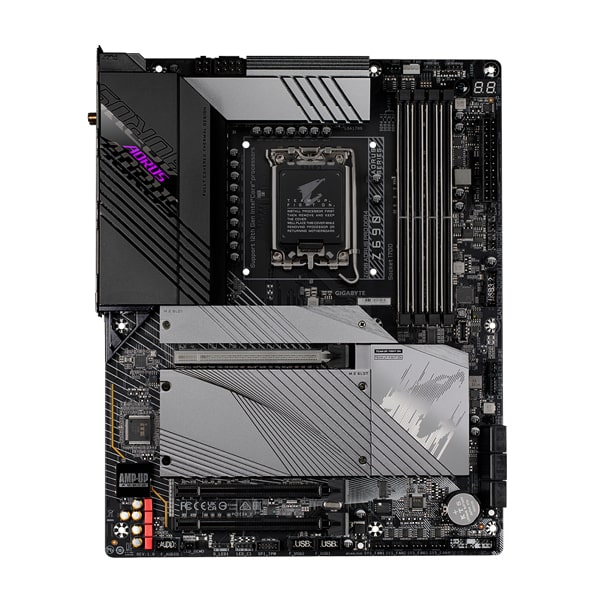

مادربرد گیگابایت مدل Z690 AORUS PRO DDR4 (rev. 1.x)
  • اشتراک گذاری

    اشتراک گذاری در شبکه های اجتماعی:

    آدرس کوتاه شده‌ی صفحه:
    اشتراک گذاری
  • لیست علاقه مندی

مادربرد گیگابایت مدل Z690 AORUS PRO DDR4 (rev. 1.x)

Gigabyte Z690 AORUS PRO DDR4 Motherboard
  • برند: گیگابایت
  • امتیاز :
    5 از 1 رای
  • کدکالا: 4132833
به زودی
مشخصات فیزیکی
ابعاد 244 × 305 ميلي‌متر
فرم فاکتور ATX
پردازنده و چیپ ست
تعداد سوکت پردازنده یک عدد
نوع سوکت پردازنده Intel LGA 1700
چیپ‌ست Intel® Z690
پردازنده های پشتیبانی شده
  • 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
پشتیبانی از RAID RAID 0, RAID 1, RAID 5, and RAID 10
حافظه رم
نوع حافظه پشتیبانی شده DDR4
تعداد اسلات حافظه چهار عدد
پیکربندی حافظه دو کاناله
حداکثر حافظه پشتیبانی شده 128 گیگابایت
پروفایل حافظه XMP دارد
توضیحات حافظه
  • DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
کارت گرافیک
سایر توضیحات کارت گرافیک
  • کارت گرافیک آنبرد: 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
اتصالات داخلی
توضیحات تکمیلی هدرها
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 1x CPU fan header
  • 1x water cooling CPU fan header
  • 4x system fan headers
  • 2x system fan/water cooling pump headers
  • 2x addressable LED strip headers
  • 2x RGB LED strip headers
  • 4x M.2 Socket 3 connectors
  • 6x SATA 6Gb/s connectors
  • 1x front panel header
  • 1x front panel audio header
  • 1x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1x USB 3.2 Gen 1 header
  • 2x USB 2.0/1.1 headers
  • 1x noise detection header
  • 2x Thunderbolt™ add-in card connectors
  • 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1x power button
  • 1x reset button
  • 1x Q-Flash Plus button
  • 2x temperature sensor headers
  • 1x reset jumper
  • 1x Clear CMOS jumper
توضیحات تکمیلی قسمت ذخیره‌سازی (Storage)
  • CPU:
  • 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • 1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 2x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
  • 6x SATA 6Gb/s connectors
پنل پشتی
کارت شبکه LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
کارت صدا Realtek® ALC4080 CODEC
کانال‌های صوتی 7.1 کانال
خروجی صدای S/PDIF دارد
توضیحات تکمیلی تمامی پورت‌های USB مادربرد
  • Chipset:
  • 2x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 4x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset+2 USB 3.2 Gen 1 Hubs:
  • 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+2 USB 2.0 Hub:
  • 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
توضیحات تکمیلی پورت‌ها
  • 1x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 4x USB 3.2 Gen 2 Type-A ports (red)
  • 4x USB 3.2 Gen 1 ports
  • 4x USB 2.0/1.1 ports
  • 2x SMA antenna connectors (2T2R)
  • 1x DisplayPort
  • 1x RJ-45 port
  • 1x optical S/PDIF Out connector
  • 2x audio jacks
سایر مشخصات
ویژگی‌های خاص
  • Support for APP Center
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
سیستم عامل‌های قابل پشتیبانی Windows ۱۱ ۶۴-bit Windows ۱۰ ۶۴-bit
مشخصات تکمیلی
  • Expansion Slots:
  • 1x PCI Express x16 slot, running at x16 (PCIEX16)
  • (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  • (The PCIEX4 slots conform to PCI Express 3.0 standard.)
سایر توضیحات بایوس
  • 1x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
