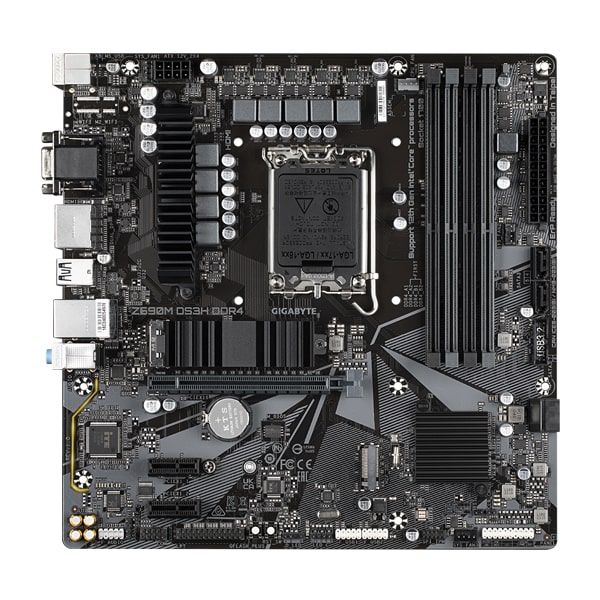

مادربرد گیگابایت مدل Z690M DS3H DDR4

Gigabyte Z690M DS3H DDR4 Motherboard
  • برند: گیگابایت
  • امتیاز :
    5 از 1 رای
  • کدکالا: 4132639
به زودی
مشخصات فیزیکی
ابعاد 244x244 میلی‌متر
فرم فاکتور microATX
پردازنده و چیپ ست
نوع سوکت پردازنده Intel LGA 1700
چیپ‌ست Intel® Z690
پردازنده های پشتیبانی شده
  • 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
پشتیبانی از RAID RAID 0, RAID 1, RAID 5, and RAID 10
حافظه رم
نوع حافظه پشتیبانی شده DDR4
تعداد اسلات حافظه چهار عدد
پیکربندی حافظه دو کاناله
حداکثر حافظه پشتیبانی شده 128 گیگابایت
پروفایل حافظه XMP دارد
توضیحات حافظه
  • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 4x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
کارت گرافیک
اسلات PCI Express x16 یک عدد
اتصالات داخلی
اسلات PCI Express x1 دو عدد
توضیحات تکمیلی هدرها
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x CPU fan header
  • 3x system fan headers
  • 1x addressable LED strip header
  • 1x RGB LED strip header
  • 2x M.2 Socket 3 connectors
  • 4x SATA 6Gb/s connectors
  • 1x front panel header
  • 1x front panel audio header
  • 1x USB 3.2 Gen 1 header
  • 2x USB 2.0/1.1 headers
  • 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1x serial port header
  • 1x parallel port header
  • 1x S/PDIF Out header
  • 1x Q-Flash Plus button
  • 1x reset button
  • 1x reset jumper
  • 1x Clear CMOS jumper
توضیحات تکمیلی قسمت ذخیره‌سازی (Storage)
  • 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4x SATA 6Gb/s connectors
پنل پشتی
توضیحات کارت شبکه
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
کارت صدا Realtek® Audio CODEC
کانال‌های صوتی 2/4/5.1/7.1-channel
توضیحات تکمیلی پورت‌ها
  • 2x USB 2.0/1.1 ports
  • 1x PS/2 keyboard/mouse port
  • 1x D-Sub port
  • 1x HDMI 2.0 port
  • 2x DisplayPorts
  • 3x USB 3.2 Gen 1 ports
  • 1x USB Type-C® port, with USB 3.2 Gen 2 support
  • 1x RJ-45 port
  • 3x audio jacks
سایر مشخصات
ویژگی‌های خاص
  • Support for APP Center
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
سیستم عامل‌های قابل پشتیبانی Windows 10 64-bit
مشخصات تکمیلی
  • کارت گرافیک انبرد:
  • 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
سایر توضیحات بایوس
  • 1x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
